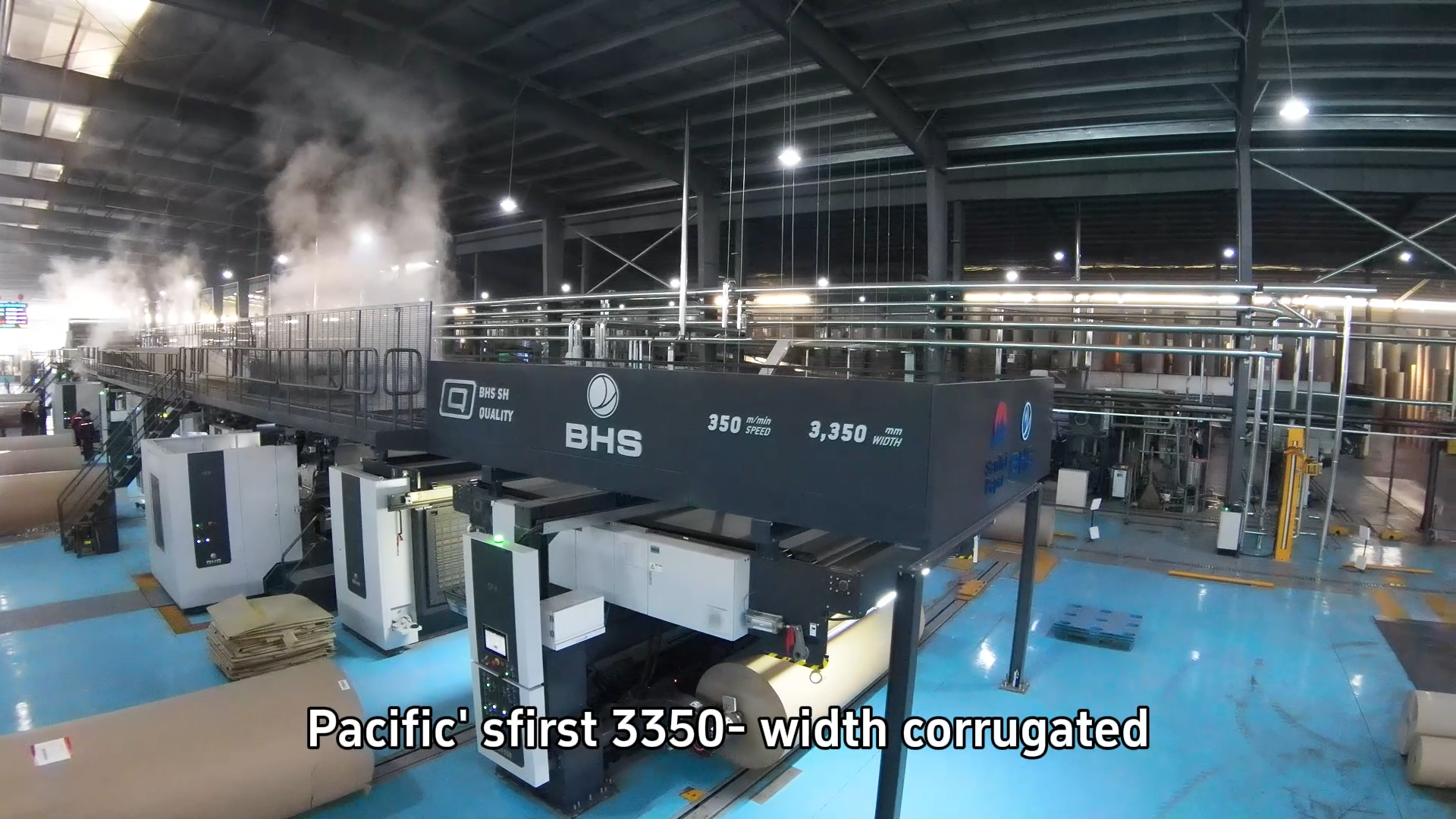

A 3350 corrugated line with two shifts can produce more than a million square feet of paperboard a day. Could you imagine this possibility before? In this video Corrface traveled to Santai.Paper Industry to see how BHS Asia.Pacific's first 3350-width corrugated line performs.

The entire BHS 3350 corrugated line is equipped with the Corrugated 4.0 Intelligent control solution and a series of the latest stand-alone machines subtitle Champion Series Splicer SP-A.Rou yun Series Belt Negative Pressure Suction Single Facer CF-B.Flash Slitting Series Full Servo Double Creasing Single Slitter SR-Q+.

High-speed Cut Off HO-M and Double Facer with Thin Hotplate DF-L and is equipped with RFID online management system of the raw paper.which allows real-time viewing of all raw paper usage data.The splicer determines the speed of the entire production line which is crucial for ultra-wide corrugated lines.The Champion Series Sp-Asplicer with features such as paper feed assist automatic paper preparation fully automatic tension setting and triple tension control can control the entire splicing process in less than half a minute.Rowan Series Belt Negative Pressure Suction Single Facer CF-B is alightweight and simple machine with double pre heaters to further ensure the temperature of the paper greatly shorten the paper transfer distance and effectively reduce heat loss.

The core technology of this belt-type. Single Facer is to ensure the precise positioning of the belt through the correction system and to use apressure free method to make the base paper of paperboard without any pressure marks.Flash Slitting Series Full Servo Double Creasing Single Slitter SR-Q+ adopts double station design compared with the traditional two slitting machines.“Flash slitting” not only greatly improves the safety but also avoids the cumulative error of double slitting which effectively reduces the waste of the size of the waste board during the order change and saves the cutting length of about Forty-five centimeters.High-speed Cut off HO-M adopts a carbon fiber knife bucket which can better control the material feeding and ensure high- speed and accurate cutting on wide corrugated lines.

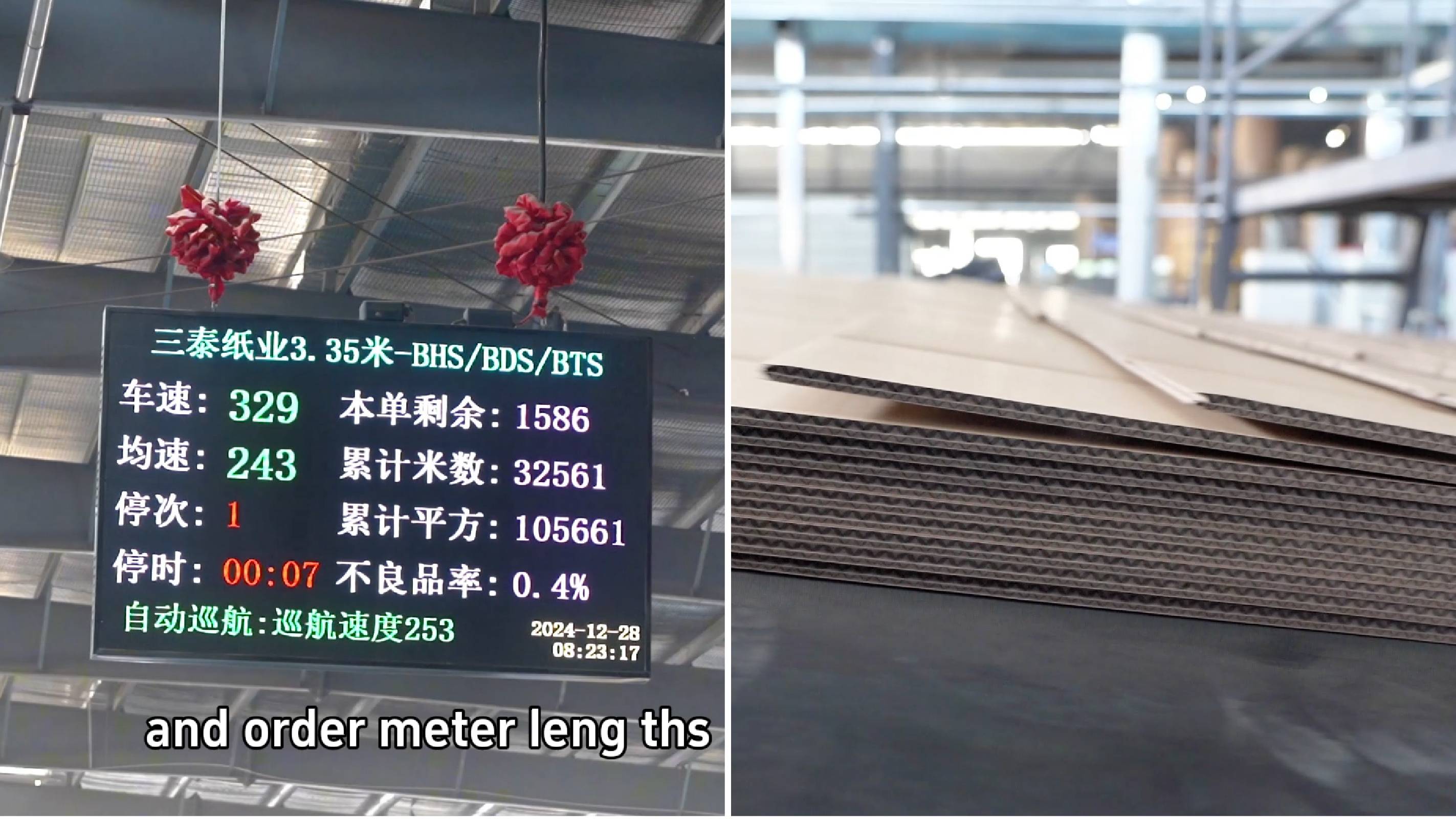

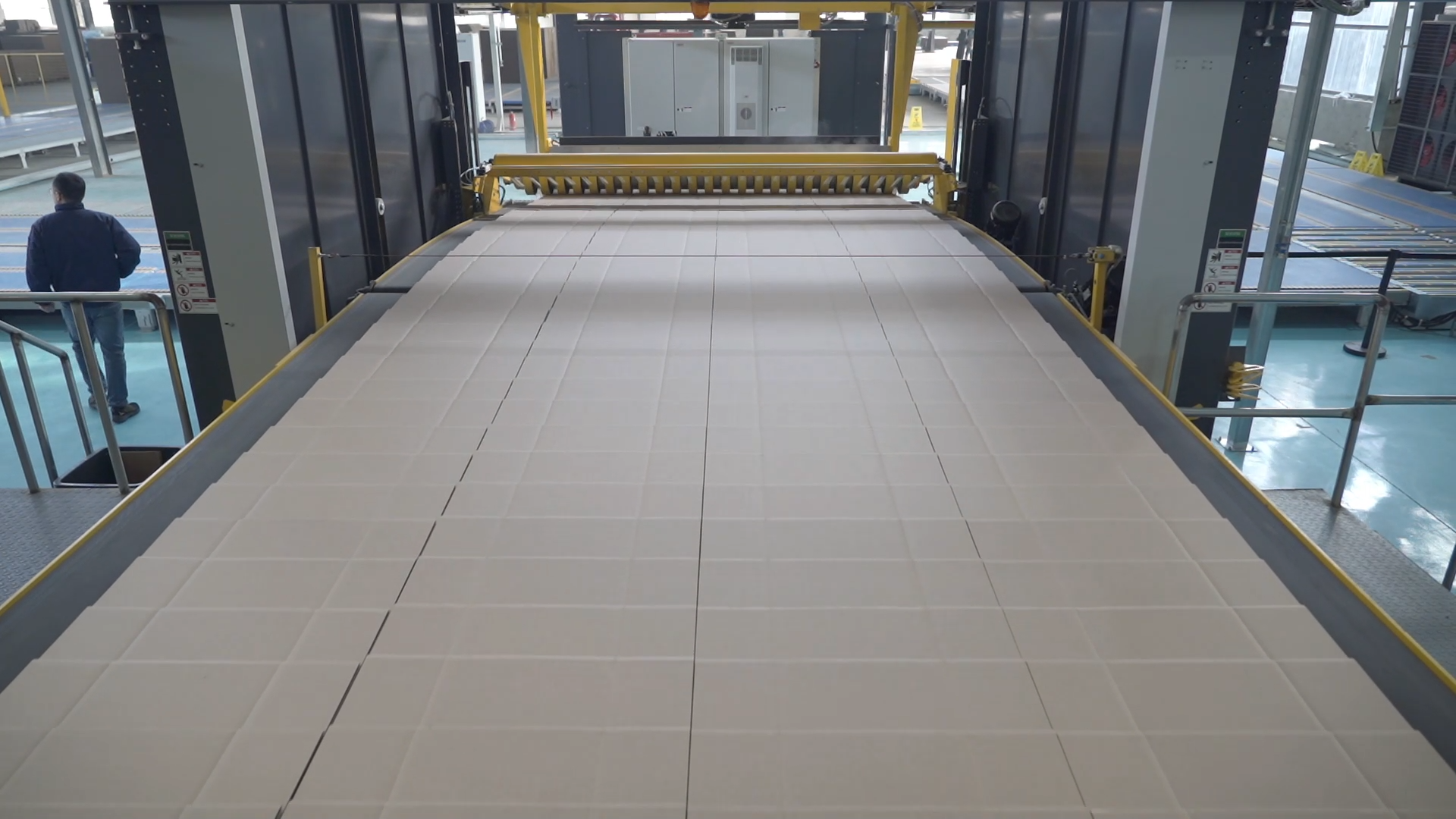

Double Facer with Thin Hot plate DF-Lis equipped with thin hot plate for better heat conduction and temperature control which greatly improves the speed and heating effect of the double facer and plays a key role in controlling the quality of paperboard.The order widths of Santai paper are basically around 3.1 meters and order meter leng ths are basically more than 1000 meters.With its extra-large widths and order integration BHS 3350 corrugated line has shown remarkable productivity in handling large orders.At the shooting site Corrface randomly selected some paperboards for display.At an average speed of 251 meters per minute and a real-time speed of 340 meters per minute whether it was just out of the production line or the cardboard that had been stored in the warehouse for a period of time the liner and bottom paper were flat and smooth with beautiful corrugated shape and the black lines of the traditional pressure rolls were almost invisible.

This is enough to verify that the BHS 3350 corrugated line has achieved the unification of three lines in terms of production efficiency paperboard quality and over all production capacity.Wide-width corrugated lines must be the way of the future for the corrugated packaging industry and the mus-have production tool.However on top of the width excellent quality lower energy consumption convenient operation and stable speed are even more must-have capabilities for wide-width corrugated lines.What do you think of BHS Asia-Pacific's first 3350 corrugated line?
