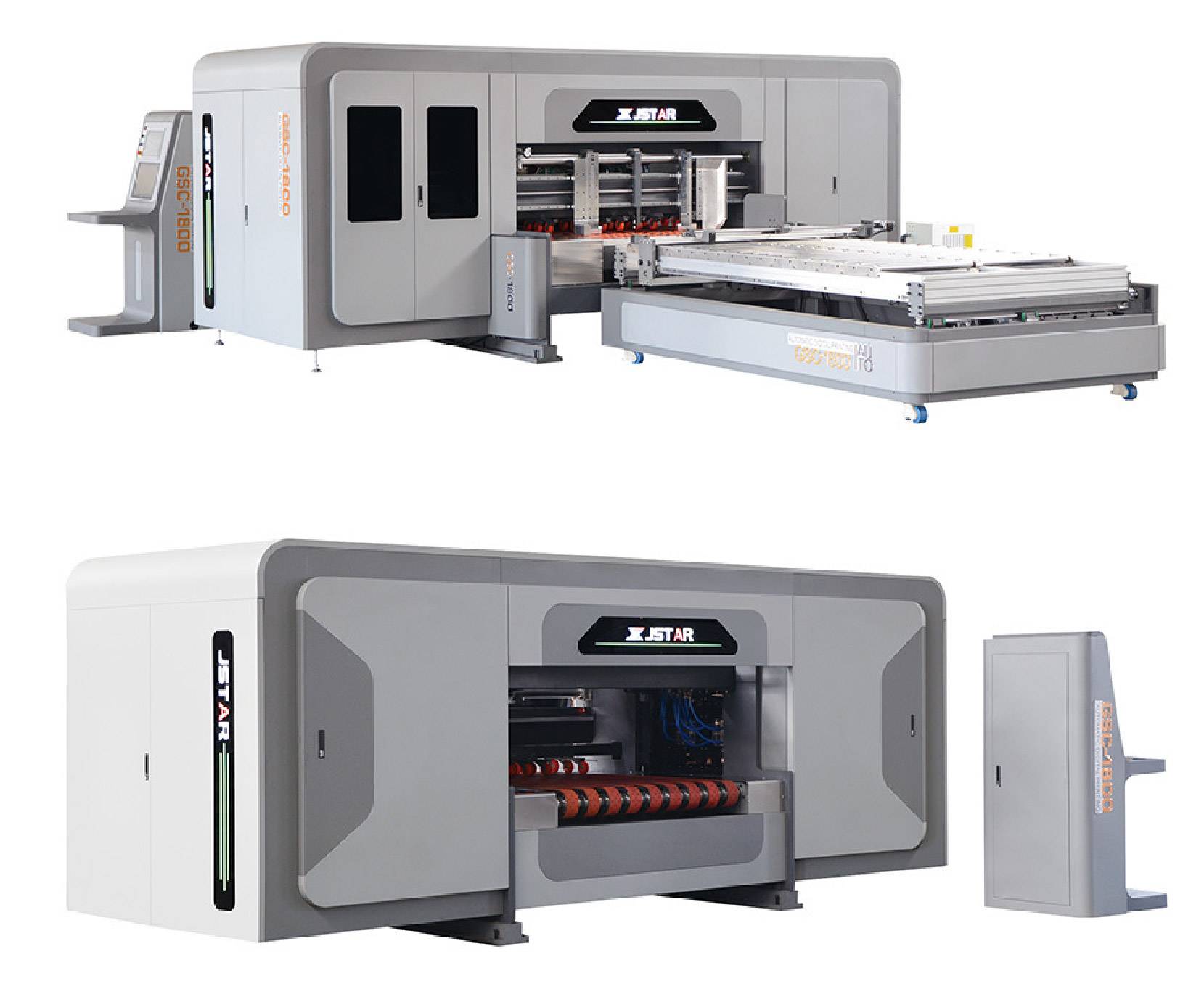

The GSC high-speed digital printer is the third generation of printers developed by our company. The entire machine uses a Japanese-made Seiko 1536 industrial-grade printhead, targeting high-volume, high-demand cardboard production, truly achieving industrial-level production. It is a mature, reliable, and durable printing device. It enjoys a good reputation both domestically and internationally, and has become an essential tool for large-scale cardboard companies.


Technical Highlights

1. Based on the characteristics of vertical paper feeding, a fully servo paper feeding platform has been specially designed. The platform is equipped with multiple rows of rollers to reduce the resistance during paper feeding. The rear paper support carriage and the rear baffle are servo-controlled, and can be positioned with one button. The entire platform is designed as a floating type, and moves left and right according to the width of the cardboard. Regardless of the size of the cardboard, paper can be smoothly placed. This is a unique paper feeding platform currently available in high-speed printers.

2. The paper feeding method of the printer main unit is five-axis servo pressure-free paper feeding. This leading-edge paper feeding method is independently developed by our company, with advanced technology and high technological content, and has independent after-sales service capabilities.

3. The main air box of the printer is designed for segmented air control. The belt is a perforated synchronous belt, which can stably adsorb the cardboard and prevent belt slippage. It is driven by a servo motor.

4. The printer engine uses full computer control, and the printhead is single-channel, also known as one head per color. The engine is designed with a pull-out dual-head structure. The head is equipped with double-layer linear guide rails for easy head maintenance and printhead replacement and maintenance.

5. The entire machine is well-sealed, and the ink, printhead, and head box are equipped with automatic temperature control devices. The printing area is equipped with an automatic humidifier to ensure the good temperature and humidity environment required by the printhead, ensuring that under normal working conditions with room temperature from -5° to 40°, a separate air-conditioned room is not required, greatly facilitating the on-site production of cardboard.

6. The Seiko printhead has a built-in ink circulation , and both waterproof pigment inks and non-waterproof dye inks can be used on it. The large P-size nozzles and the automatic circulation ink path  greatly reduce the risk of nozzle clogging during production. The frequency of cleaning the printhead during printing is also greatly reduced, reducing the unnecessary waste of cleaning ink and saving the cost of cardboard production.


Technical Parameters

Model

GSC-1800

GSC-2500

Maximum Theoretical Printing Speed

0.8 - 1.5 meters/second

0.8 - 1.5 meters/second

RIP Software

Maintop

Maintop

Maximum Paper Feeding Width

1800 mm

2500 mm

Image Format

TIFF, JPG, PDF, PNG

TIFF, JPG, PDF, PNG

Working Environment

Temperature: 18℃-30℃

Temperature: 18℃-30℃

Humidity: 50%-70%

Humidity: 50%-70%

Printhead Type

Seiko RC1536 (Japan)

Seiko RC1536 (Japan)

Operating System

Windows 7 / Windows 10

Windows 7 / Windows 10

Number of Printheads

32

44

Total Power

Approximately 20 KW

Approximately 22 KW

Maximum Printing Width

850 mm

1170 mm

Maximum Cardboard Thickness

20 mm

20 mm
